7500 Lumen Laser Projector 3D Immersive Projection Projector
We can provide the entire immersive projection system, not just the
projector.
The MX-SL7000U WUXGA short-throw laser projector is bright and
versatile, making it perfect for any professional installation.
With an impressive brightness of 7,000 ANSI lumens and a laser
light source lifespan of up to 20,000 hours, this projector can
project images on screens as large as 200 inches. It is ideal for
use in auditoriums, restaurants, gyms, and other large venues.
Key Features of 3D Immersive Projection Projector
- Brightness: 7500 Lumen
- Resolution: WUXGA
- Contrast: 5,000,000:1
- Light Source: Laser
- Display Technology: 3LCD
- Len Shift: V:＋50%～0%,H:±20%
- Keystone Correction: V: ±15°/ H: ±15°; Pincushion/Barrel Correction; 6 Corner Geometry correction;4 Corner Correction;Grid image tune
- Throw Ratio: 0.68 (wide)-0.82 (tele)
- Focus/Zoom: Manual
- 360° Projection: Yes
- Edge Blending: Yes
- Speaker: 16W
Specification
| | Model No. | MX-SL7500U |
| Brightness(Lumen) | 7500 |
| Overall Spec |
| Panel | Display Panel | 3x0.64" with MLA |
| Light source | NICHIA LASER |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Lifetime | Full Normal/Normal mode | 20000hrs |
| Projection Lens | F | 1.7~1.8 |
| f | 9.66mm-11.65mm |
| Zoom/Focus | Manual |
| Throw Ratio | 0.68 (wide)-0.82 (tele) |
| Zoom Ratio | 1.21 |
| Screen size | 50-300inch |
| Lens Shift | V:＋50%～0%,
H:±20% |
| CR | Contrast Ratio | 5000000:1 |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9 |
| Terminal(I/O port) |
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 |
| USB-A | *1 |
| USB-B | *1 (Display) |
| RJ45 | *1(Display) |
| HD BaseT | *1(Optional) |
Audio in
(mini jack,3.5mm) | *1 |
| Output | VGA | *1 |
Audio out
(mini-jack,3.5mm) | *1 |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) |
| USB-B | *1 (For upgrade) |
| General Spec |
| Audio | Speaker | 16W*1 |
| Other Functions |
| Keystone | Keystone Correction
(Lens@center) | V: ±15°
H: ±15°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune |
| Others | 360° projection | Yes |
| Edge Blending | Yes |
| Accessory |
| | Manual Languages | Chinese, English |
| Standard Accessories | Power cord, HDMI cable, and Remote control |
3LCD Display Technology
A 3LCD projector begins by splitting white light into separate red,
green, and blue beams. Each of these beams passes through its own
individual LCD, which adjusts the brightness for each color
accurately. After this, the color beams are perfectly recombined
using a prism and projected as a complete image. There’s no
spinning wheel and no rainbow effect, resulting in a comfortable
viewing experience.

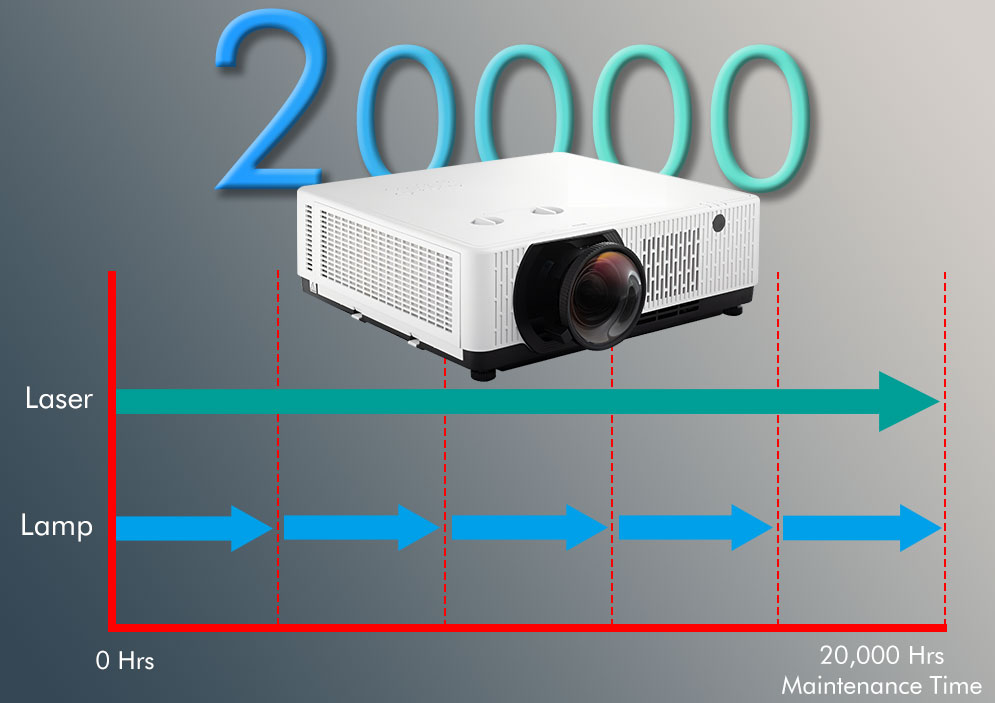

Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source that lasts up to 20,000
hours*, this projector provides long-term, virtually
maintenance-free usage, resulting in a lower overall total cost of
ownership.
Short Throw, No Shadows, No Blinding Lights
A short-throw lens allows for large images to be projected from a
short distance. This design eliminates issues such as blinding
lights in front of the projector, distracting shadows on the
projected image, and glaring hotspots on the screen. Since the
projector's light source is positioned closer to the surface being
projected onto, distractions are minimized.
Len Shift
A short-throw projector with lens shift technology allows users to
accurately position and align images with ease, providing greater
flexibility during installation. These features significantly
improve the overall viewing experience, making it an excellent
option for a range of professional and leisure applications where
image quality and precision are crucial.
Keystone Correction
Short-throw projectors with keystone correction technology help
achieve clear image alignment in small spaces by adjusting
distortions from angled projections.
360° Installation
